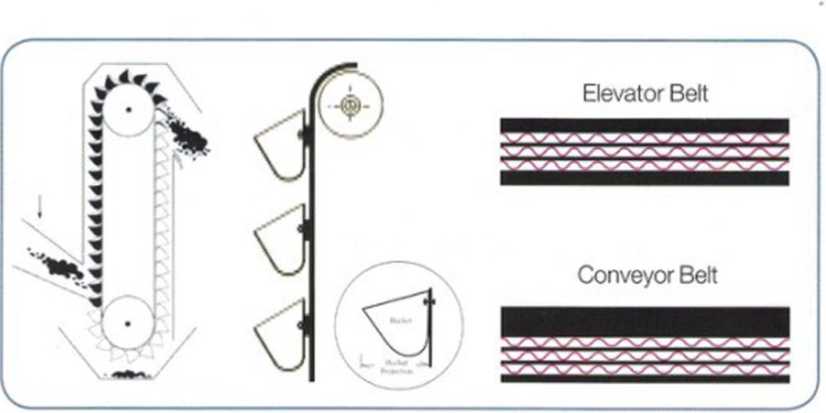

Difference between Elevator Belt and Conveyor Belt |
Usually the elevator belt will be attached with plastic buckets to carry the materials in vertical position, while normal conveyor belts are designed to convey materials in horizontal or low inclined angle position. |
|
Belt Properties |
P |
N |
M |
OR1 |
OR2 |
HR 100 |
HR120 |
HR 150 |
||
|
Tensile between Top Cover and Carcass |
(Min.) |
N/mm. |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Tensile between Carcass layers |
(Min.) |
N/mm. |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Tensile between Bottom Cover and Carcass |
(Min.) |
N/mm. |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Tensile Strength |
(Min.) |
MPa |
15 |
20 |
25 |
8 |
8 |
12 |
10 |
10 |
|
Elongation At Break |
(Min.) |
% |
350 |
400 |
450 |
350 |
300 |
350 |
250 |
250 |
|
Abrasion |
(mm3) |
|
250 |
160 |
120 |
Good |
Good |
Good |
Good |
Good |
|
Hardness |
°A |
|
60-65 |
60-65 |
60-65 |
60-65 |
60-65 |
60-65 |
60-65 |
60-65 |
|
Extension Ratio |
% |
|
0.5-1 |
0.5-1 |
0.5-1 |
0.5-1 |
0.5-1 |
0.5-1 |
0.5-1 |
0.5-1 |
|
Tear Resistance |
|
|
Good |
Very Good |
Excellent |
Good |
Good |
Good |
Good |
Good |
|
Ross Flexing , |
|
|
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
|
Oil Resistance |
|
|
Poor |
Poor |
Poor |
Excellent |
Excellent |
Fair |
Fair |
Fair |
|
Acid-Alkaline Resistance |
|
|
Poor |
Poor |
Poor |
Fair |
Fair |
Fair |
Far |
Fair |
|
Operating Temperature |
(Max.) |
<C |
80 |
80 |
80 |
80 |
100 |
100 |
120 |
150 |
